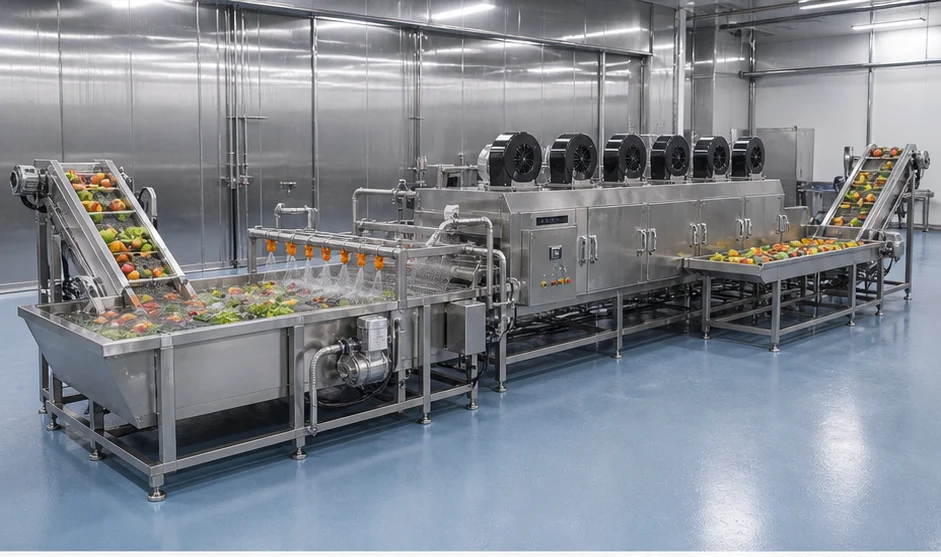

Fruit and Vegetable Washing and Drying Line
Joyshine fruit and vegetable washing line is a modular solution for strawberries, blueberries, cherry tomatoes and other produce. It combines bubble washing, spray rinsing, air drying and sorting, with customizable capacity from 50-5000kg/h for food processing factories and frozen fruit production.
Key Parameters
| Capacity | 50-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 18000-36000 x 1200-2200 x 1800 mm |
Suitable Materials
How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Feeding
Sorting
Bubble washing
Spray rinsing
Dewatering
Air drying
Packing
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Feeding Hopper & Elevator
Buffer storage and gentle lifting into the washing line.

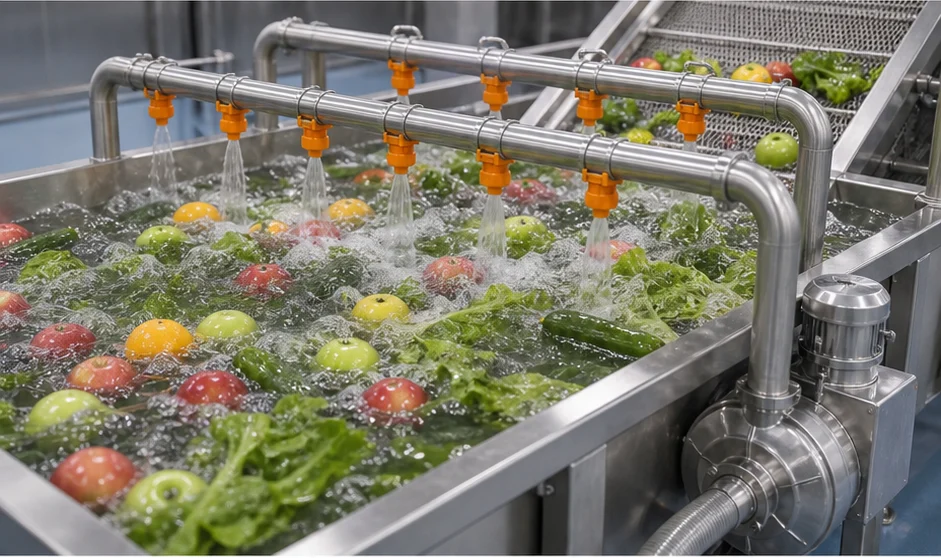

Bubble Washing Machine
Main washing section with bubble agitation and circulating water.
Spray Rinsing Section
Fresh-water spray rinse removes surface residue before discharge.
Vibration Dewatering Machine
Removes surface water and transfers material to the next process.
Air Knife Drying Machine
High-velocity air knives reduce moisture before packing.
Control Cabinet
Centralized controls for speed, pump and blower adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 50-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 18000-36000 x 1200-2200 x 1800 mm |
| Model | JS-FVWDL-5000 |
| Main Power | 18-45 kW |
| Water Consumption | 1.5-4.0 m3/h with circulation |
| Approx. Weight | 3500-9000 kg |
| Applicable Materials | vegetable; fruit |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
Mixed fruits and vegetables such as leafy vegetables, cucumbers, peppers, apples and citrus can be handled after process adjustment.
Yes. Joyshine configures 50-5000kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
The usual options are bubble washing, spray rinsing, vibration dewatering, air drying and manual inspection for mixed produce lines.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
Joyshine fruit and vegetable washing line is a modular solution for strawberries, blueberries, cherry tomatoes and other produce. It combines bubble washing, spray rinsing, air drying and sorting, with customizable capacity from 50-5000kg/h for food processing factories and frozen fruit production.
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
