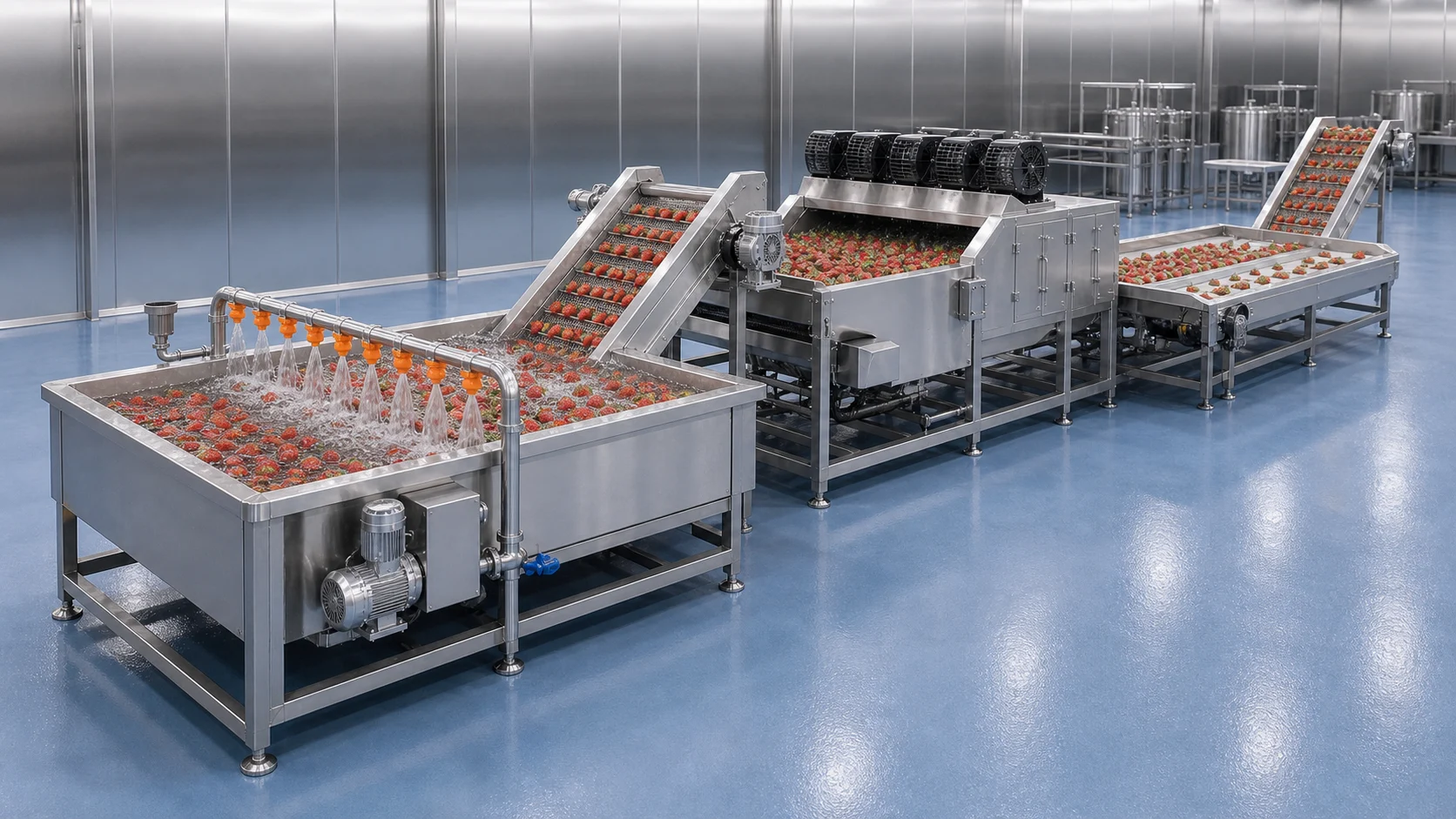

Strawberry Washing Line
The Joyshine strawberry washing line is a high-efficiency industrial fruit and vegetable washing line with customizable capacity from 100-5000kg/h. It is suitable for food processing factories, fruit and vegetable processing plants, and frozen fruit production facilities.
Key Parameters
| Capacity | 100-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 14000-30000 x 1200-2200 x 1750 mm |
Suitable Materials
How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Sorting
Bubble washing
Gentle spray rinsing
Air drying
Inspection
Packing
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Feeding Hopper & Elevator
Buffer storage and gentle lifting into the washing line.

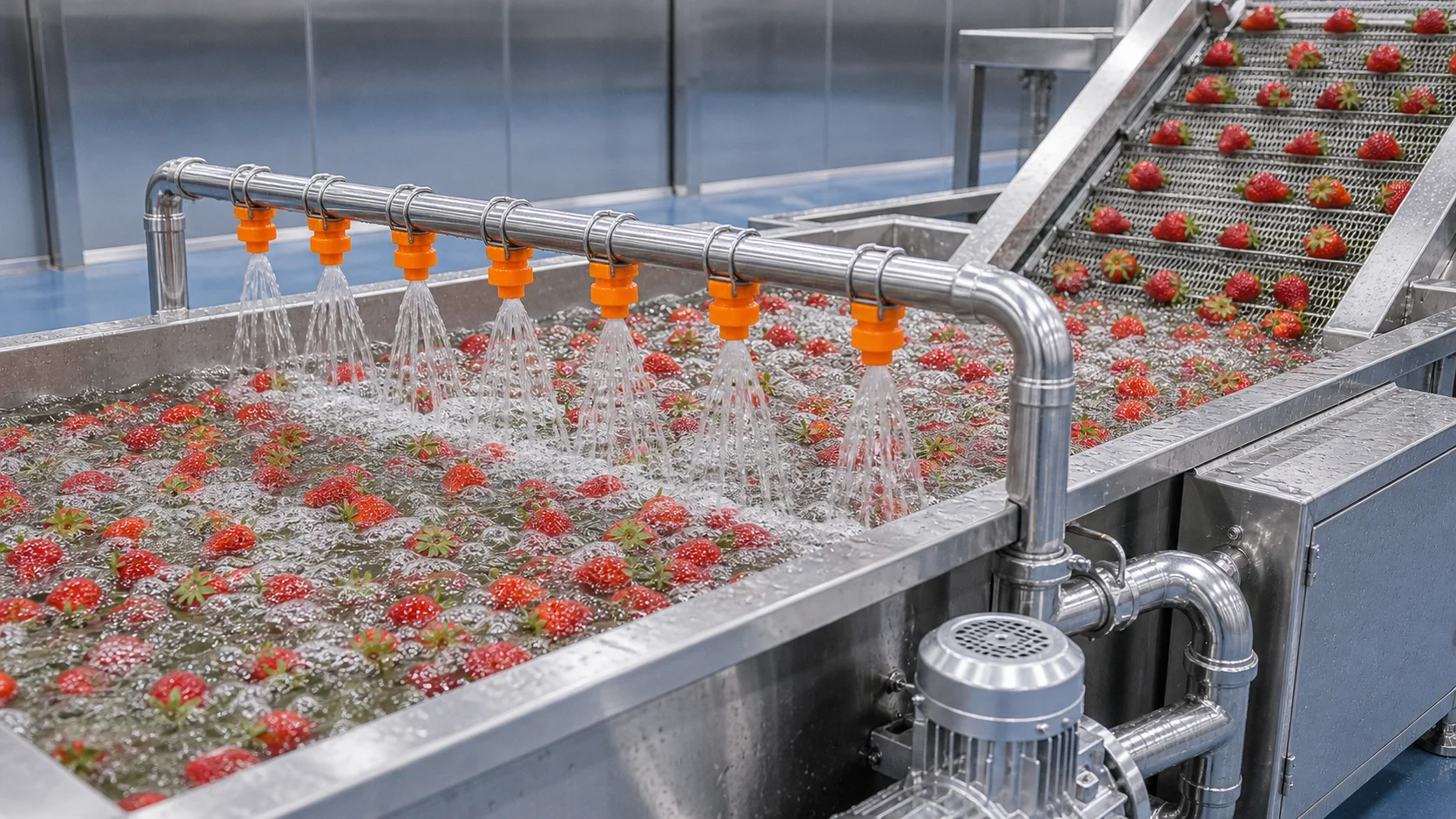

Bubble Washing Machine
Main washing section with bubble agitation and circulating water.
Spray Rinsing Section
Fresh-water spray rinse removes surface residue before discharge.
Vibration Dewatering Machine
Removes surface water and transfers material to the next process.

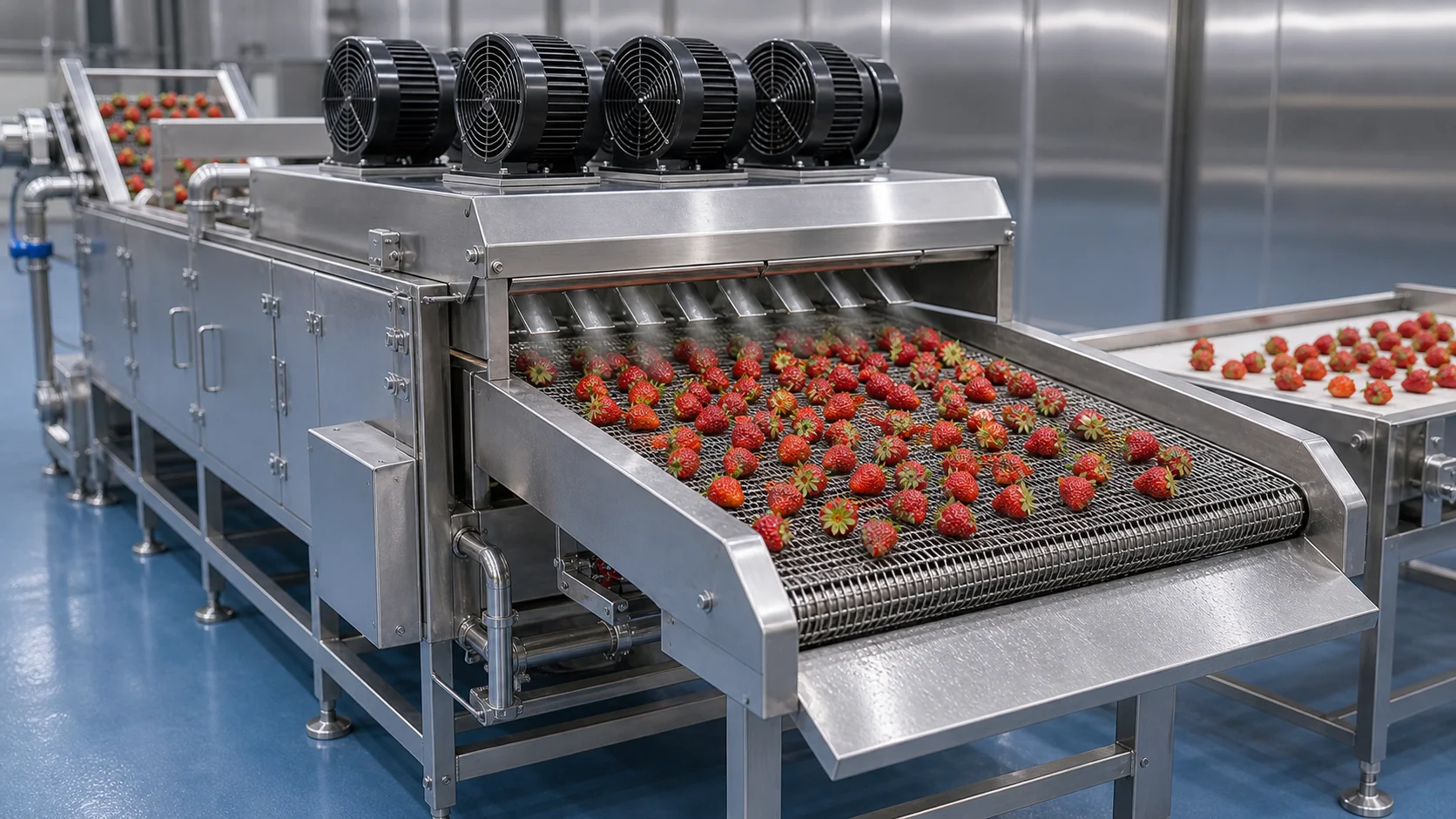

Air Knife Drying Machine
High-velocity air knives reduce moisture before packing.
Control Cabinet
Centralized controls for speed, pump and blower adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 100-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 14000-30000 x 1200-2200 x 1750 mm |
| Model | JS-SWL-3000 |
| Main Power | 12-32 kW |
| Water Consumption | 1.0-3.0 m3/h with gentle overflow |
| Approx. Weight | 2500-7500 kg |
| Applicable Materials | vegetable; fruit; strawberry |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
Fresh strawberries and other delicate berries are suitable when low-impact water flow, gentle transfer and controlled spray pressure are used.
Yes. Joyshine configures 100-5000kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
For strawberries, we often add bubble washing with overflow removal, gentle spray rinsing, draining and air drying before packing or freezing.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
The Joyshine strawberry washing line is a high-efficiency industrial fruit and vegetable washing line with customizable capacity from 100-5000kg/h. It is suitable for food processing factories, fruit and vegetable processing plants, and frozen fruit production facilities. Core equipment can include a bubble washing machine, rotating roller air dryer and manual sorting table, gently cleaning strawberries and other delicate fruits while protecting product integrity.
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
