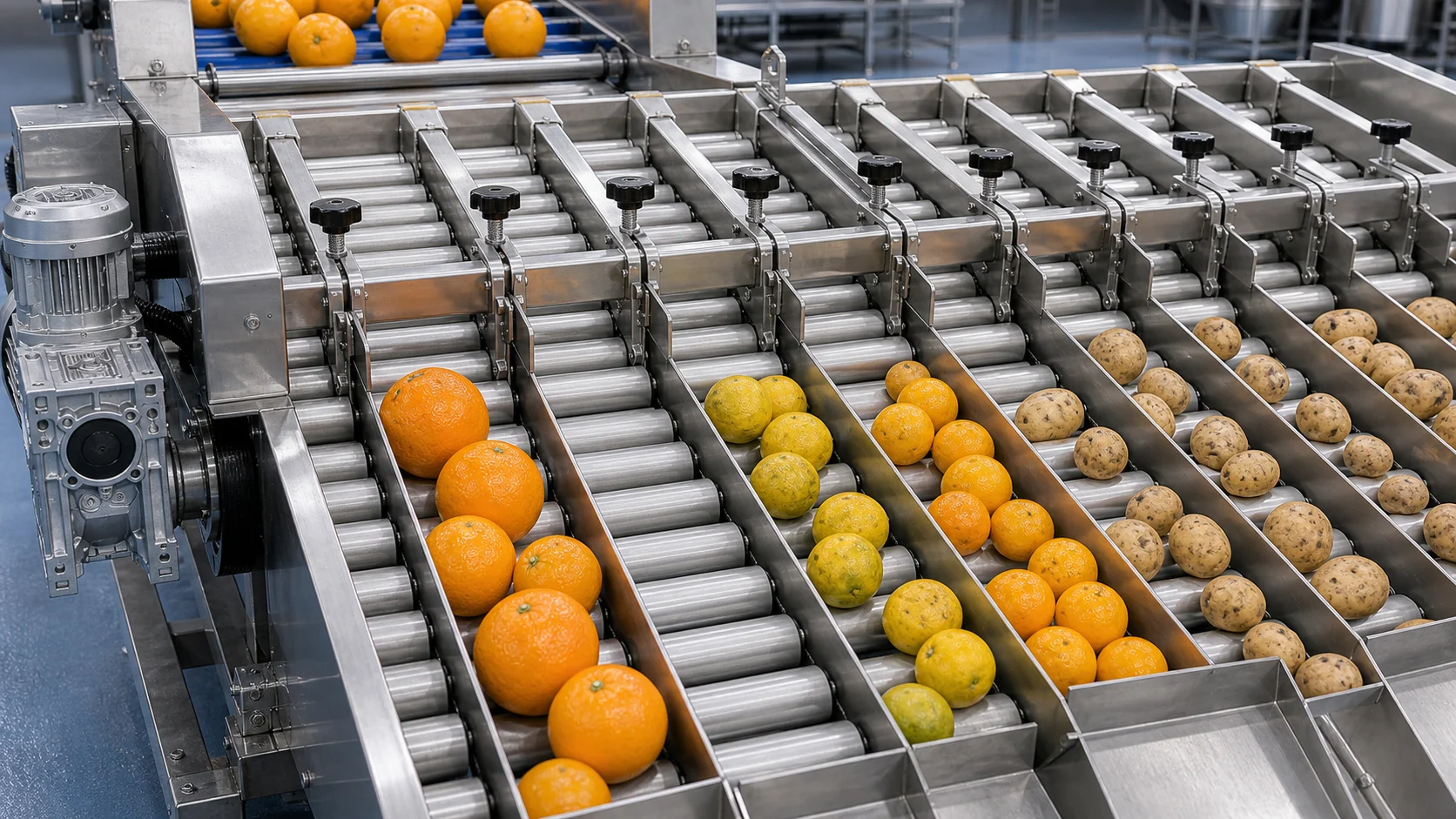

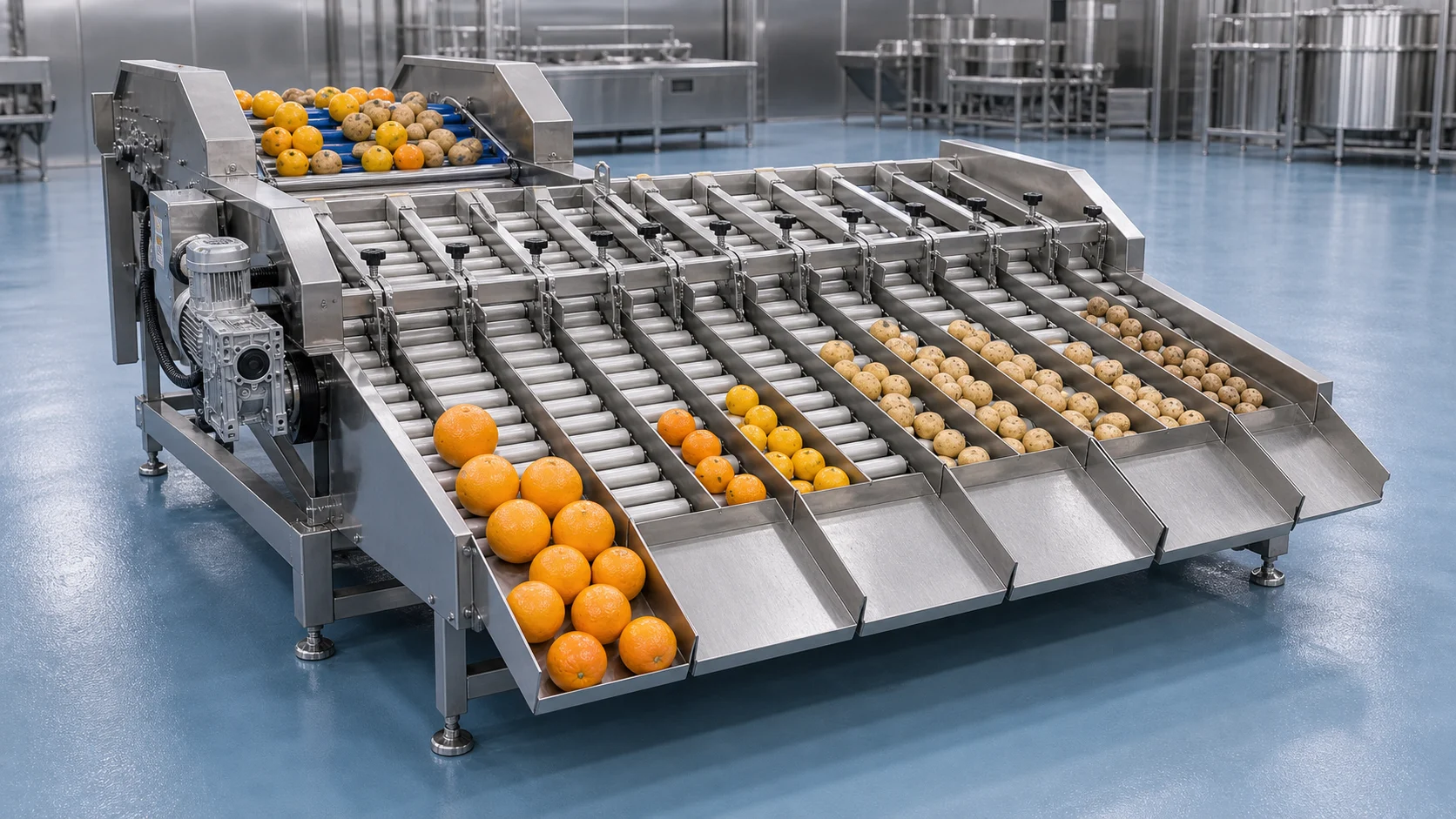

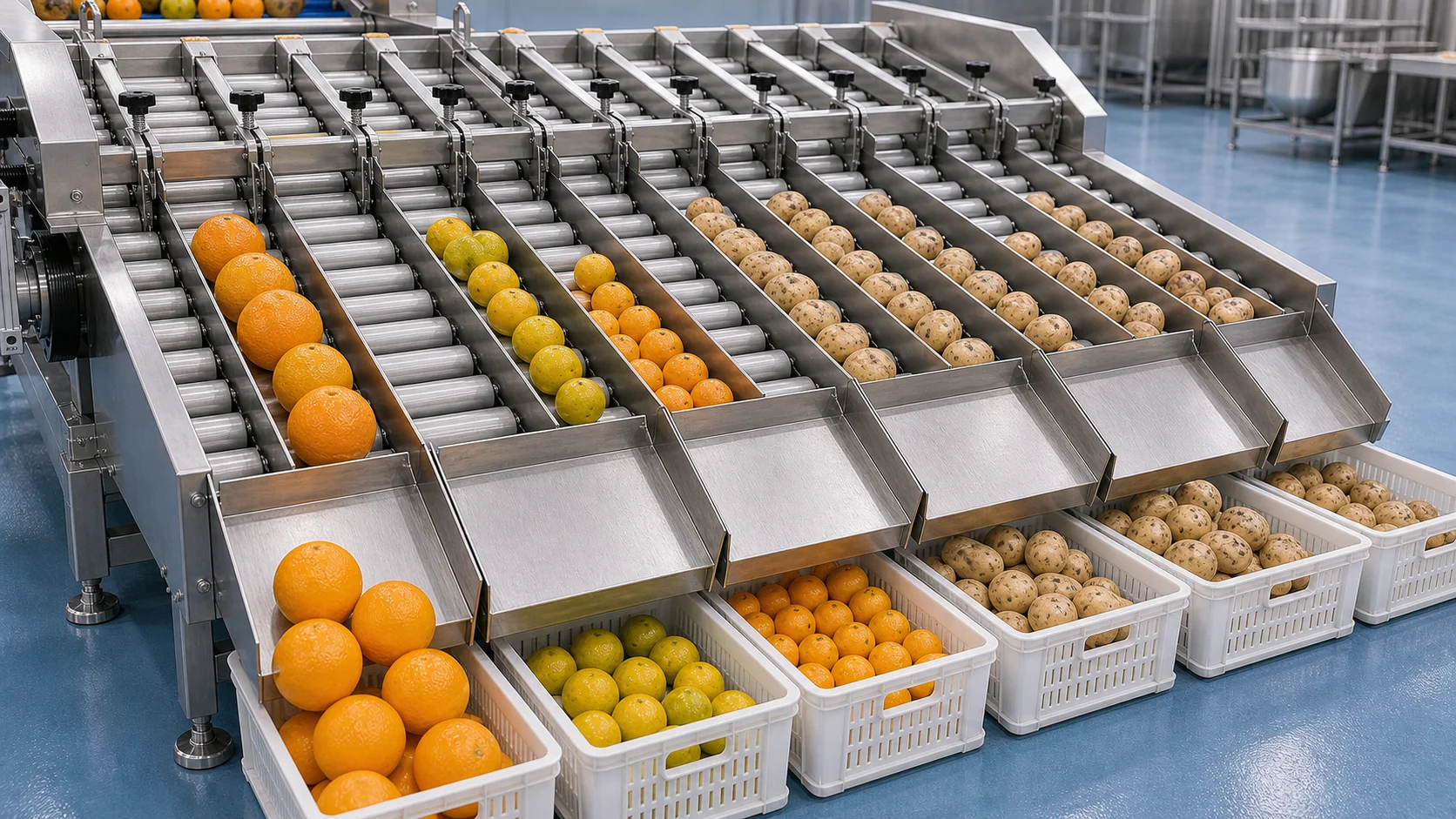

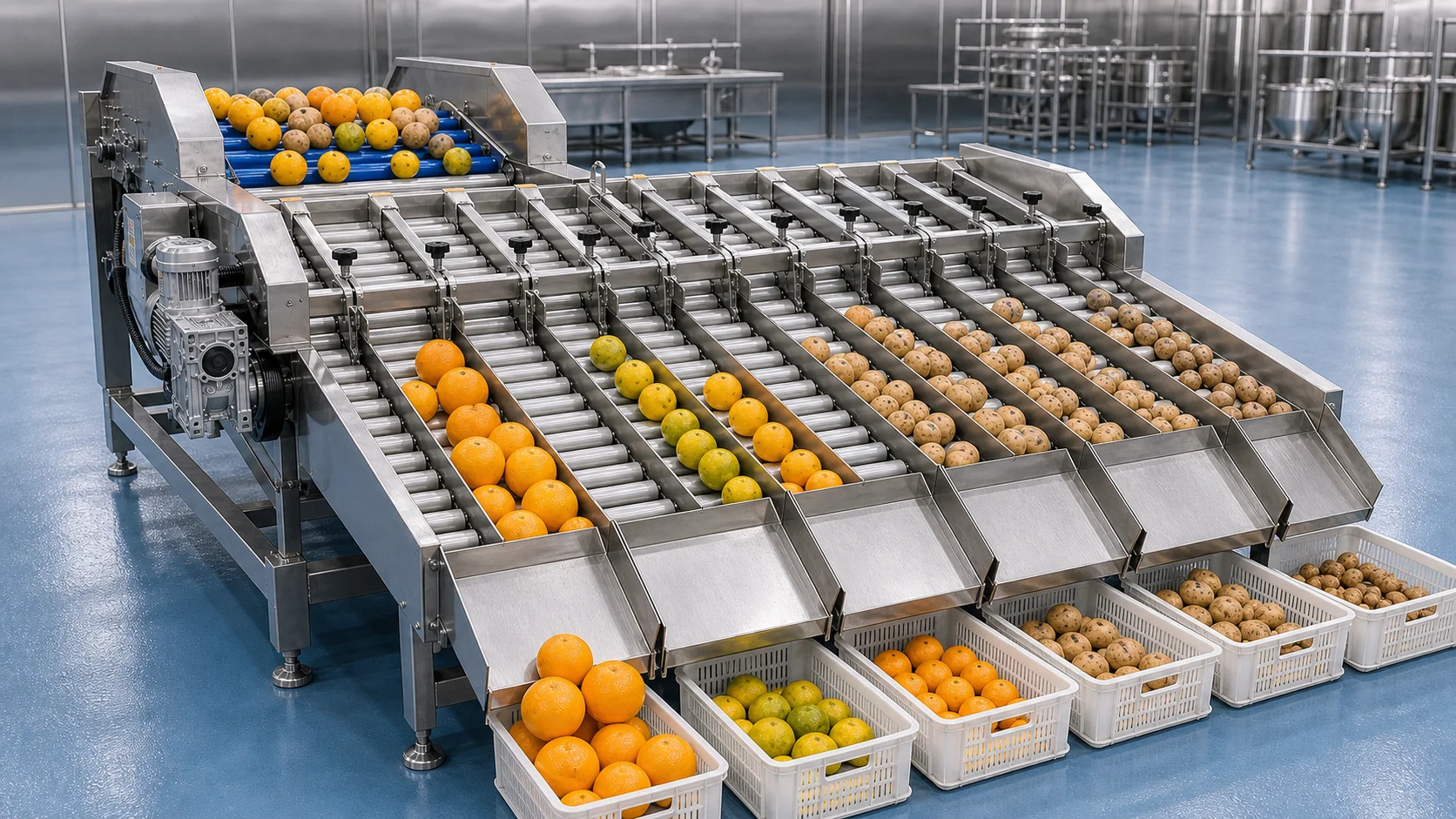

Roller Grading Machine
Joyshine's industrial roller grading machine offers high-speed, precision size sorting for various fruits and vegetables. Durable construction with gentle product handling. Optimize your packing efficiency today
Key Parameters
| Capacity | 500-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Approx. 3500-9000 x 1000-1800 x 1500 mm |
Suitable Materials
How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Feeding
Roller conveying
Size grading
Discharging
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Main Processing Chamber
Core washing or processing area built with food-grade stainless steel.
Water Circulation / Spray System
Improves cleaning performance while reducing water waste.
Brush / Roller / Conveyor Unit
Configured according to product shape and cleaning requirements.
Discharge Conveyor
Transfers finished material smoothly to the next step.
Control Cabinet
Simple controls for daily operation and adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 500-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Approx. 3500-9000 x 1000-1800 x 1500 mm |
| Model | JS-RG-3000 |
| Main Power | 1.5-5.5 kW |
| Water Consumption | No process water required |
| Approx. Weight | 700-2600 kg |
| Applicable Materials | vegetable; fruit |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
Round or oval fruits and vegetables such as potatoes, onions, citrus, apples and tomatoes can be graded by diameter.
Yes. Joyshine configures 500-5000kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
Roller gap, grading lanes, collection bins and inspection conveyors are configured according to size ranges.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
Joyshine's industrial roller grading machine offers high-speed, precision size sorting for various fruits and vegetables. Durable construction with gentle product handling. Optimize your packing efficiency today
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
You May Also Need

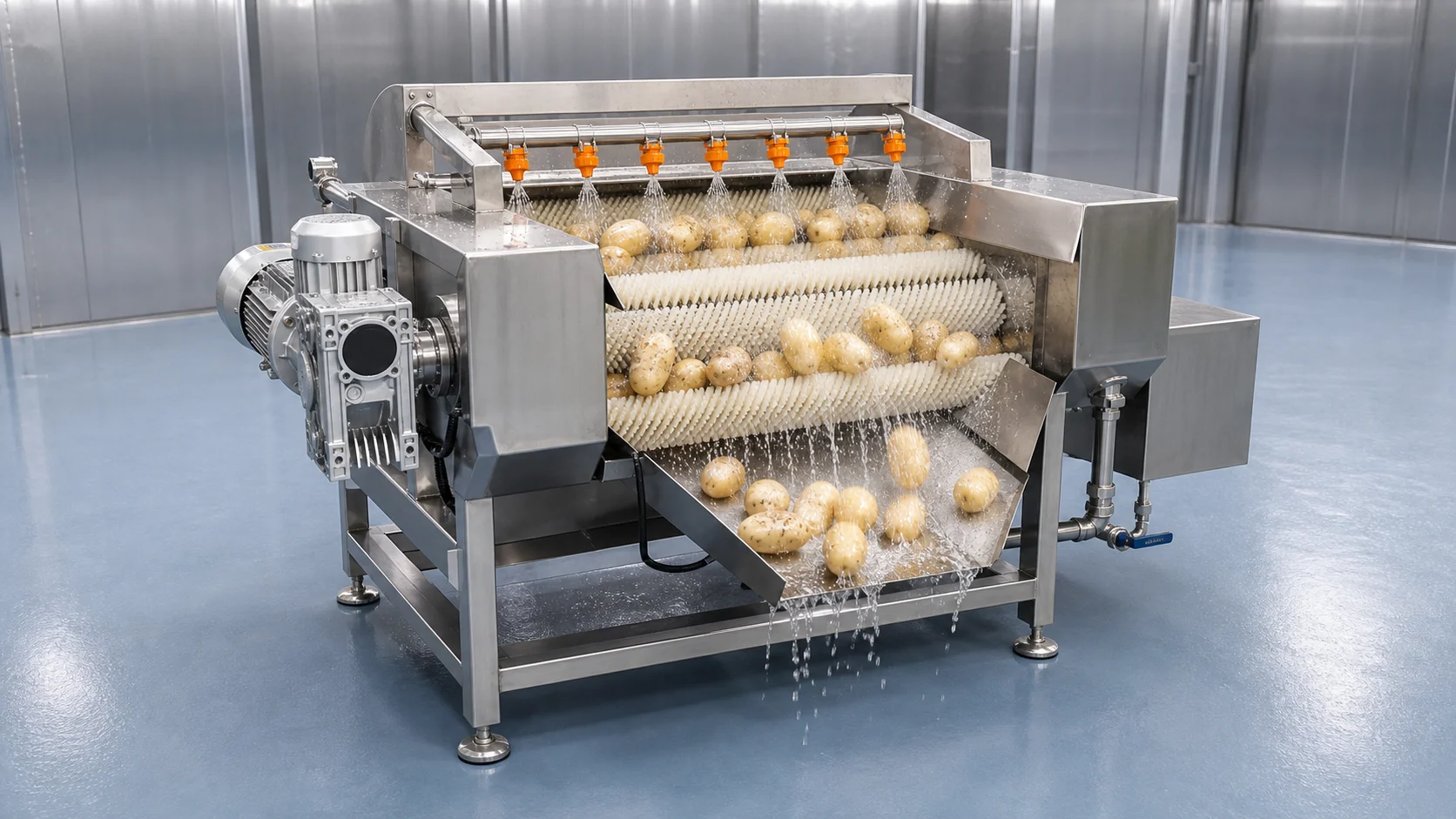

Potato Washing and Peeling Machine
1. transmission part 2. Outlet Manual control of discharge after working and it is easy to operate. 3. Moving wheels and easy to move 4. Spraying nozzle. Spray direction id adjustable

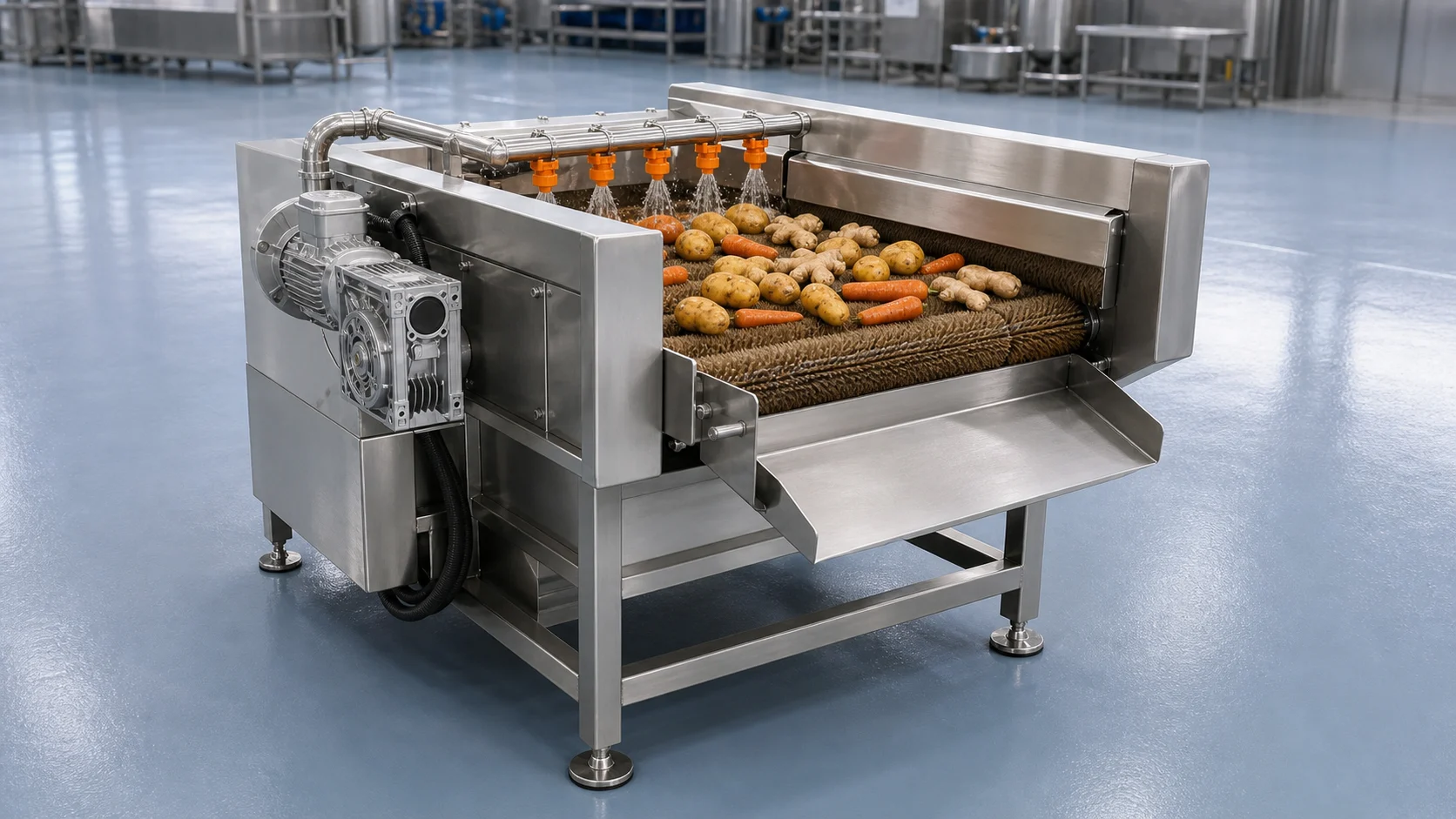

Root Vegetable Peeling Machine
Root vegetable peeling machine needs to be equipped with an air compressor to control the discharge, there are 5 knives inside, and the general peeling time is 1 minute. The capacity can be up to 800kg/h.

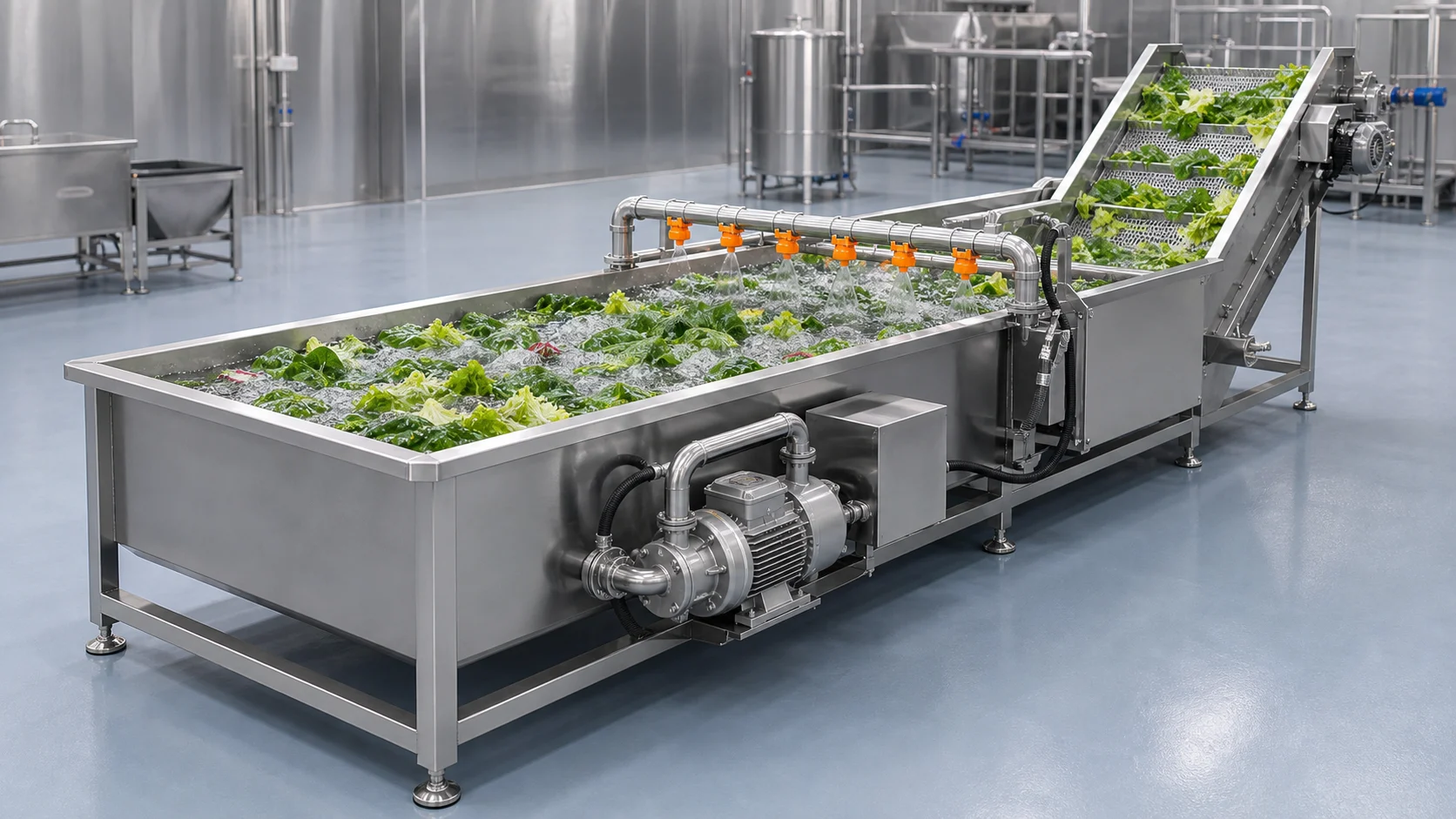

Leafy Vegetable Washing Machine
