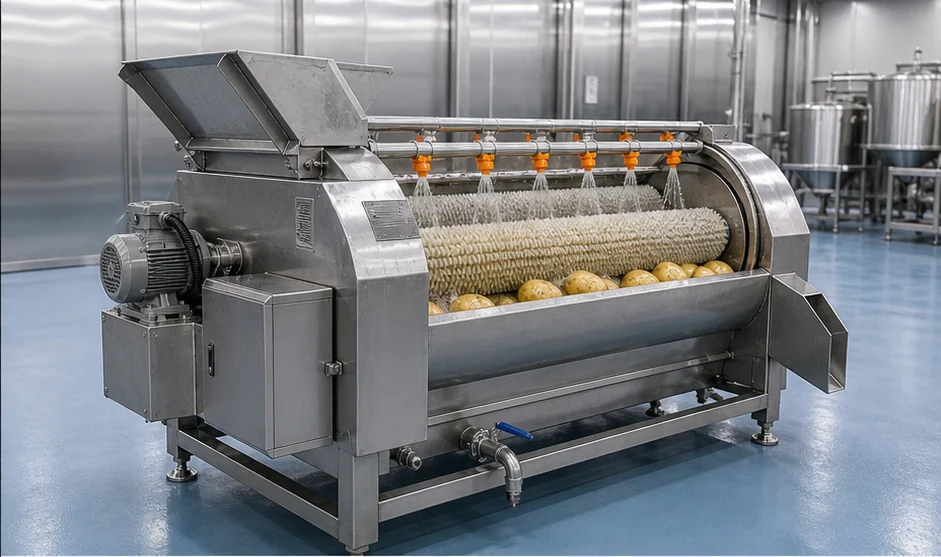

Potato Washing and Peeling Machine
1. transmission part 2. Outlet Manual control of discharge after working and it is easy to operate. 3. Moving wheels and easy to move 4. Spraying nozzle. Spray direction id adjustable
Key Parameters
| Capacity | 200-1000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Approx. 3000-8000 x 1000-1600 x 1650 mm |
Suitable Materials
How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Feeding
Washing
Peeling

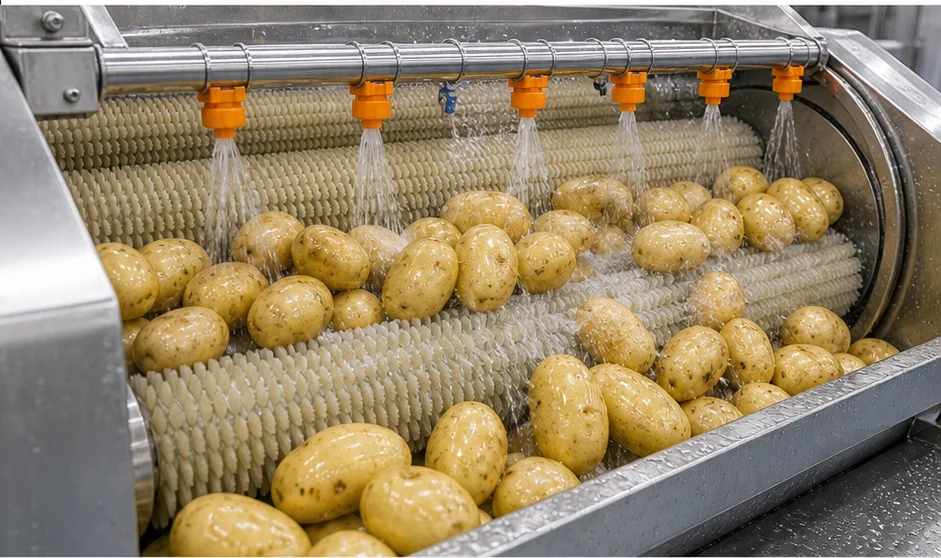

Spray rinsing

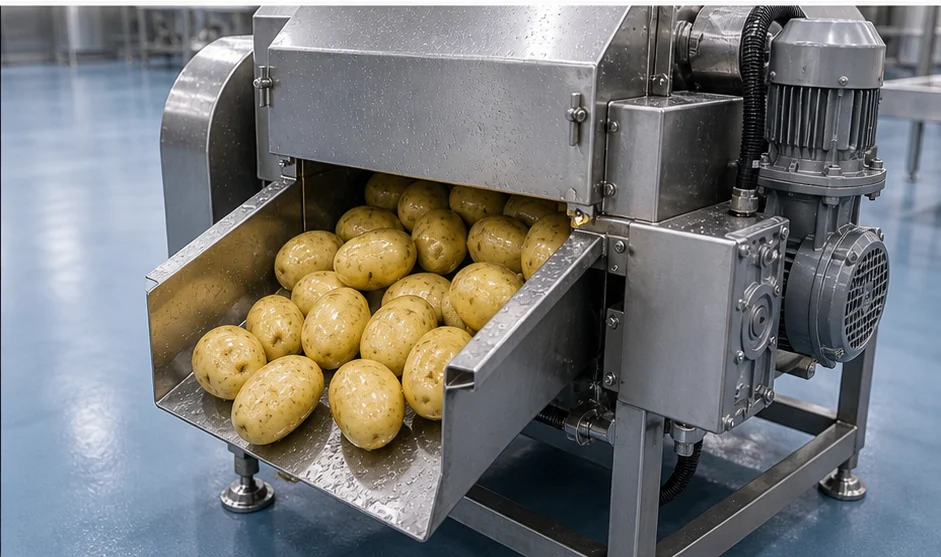

Discharging
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Main Processing Chamber
Core washing or processing area built with food-grade stainless steel.
Water Circulation / Spray System
Improves cleaning performance while reducing water waste.
Brush / Roller / Conveyor Unit
Configured according to product shape and cleaning requirements.
Discharge Conveyor
Transfers finished material smoothly to the next step.
Control Cabinet
Simple controls for daily operation and adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 200-1000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Approx. 3000-8000 x 1000-1600 x 1650 mm |
| Model | JS-PWP-3000 |
| Main Power | 5.5-15 kW |
| Water Consumption | 0.8-2.5 m3/h for washing and rinsing |
| Approx. Weight | 900-3000 kg |
| Applicable Materials | potato |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
Potatoes and similar tubers with soil and thin skin can be washed and peeled by brush or abrasive rollers.
Yes. Joyshine configures 200-1000kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
Brush/abrasive roller combination, spray rinsing, peeling time and discharge conveyor are configured by peeling effect.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
1. transmission part 2. Outlet Manual control of discharge after working and it is easy to operate. 3. Moving wheels and easy to move 4. Spraying nozzle. Spray direction id adjustable
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
