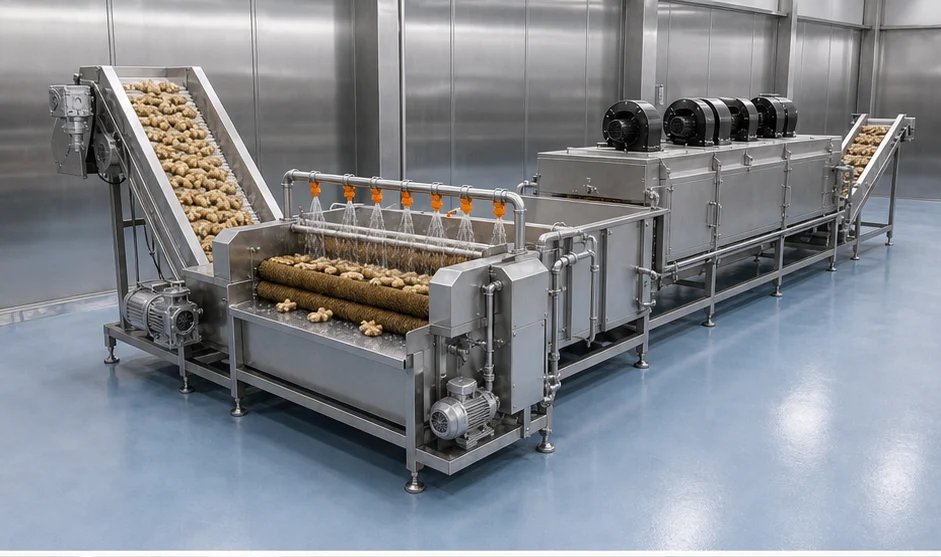

Ginger Washing and Drying Line
The High-Efficiency Ginger Washing and Drying Production Line is a fully automated system designed to efficiently clean and dry ginger for various food processing needs. Featuring advanced bubble washing, high-pressure spraying, and air drying, this production line ensures tho...
Key Parameters
| Capacity | 500-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 16000-32000 x 1200-2200 x 1800 mm |
Suitable Materials
How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Feeding
Brush washing
Spray rinsing
Inspection
Air drying
Packing
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Feeding Hopper & Elevator
Buffer storage and gentle lifting into the washing line.

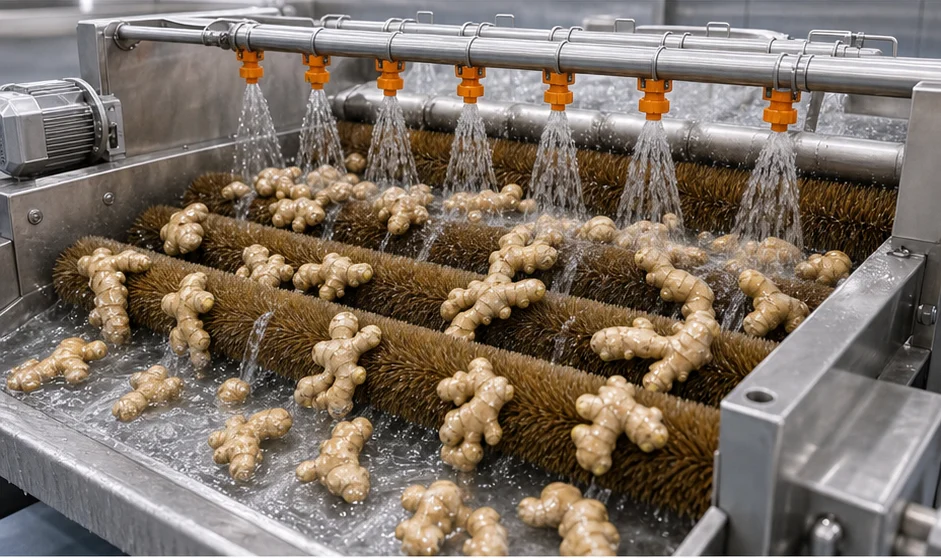

Bubble Washing Machine
Main washing section with bubble agitation and circulating water.
Spray Rinsing Section
Fresh-water spray rinse removes surface residue before discharge.
Vibration Dewatering Machine
Removes surface water and transfers material to the next process.

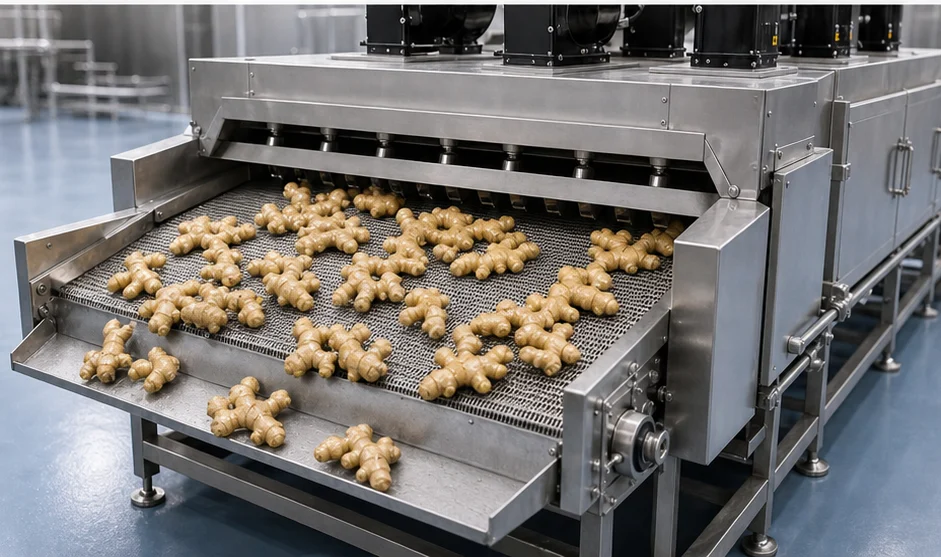

Air Knife Drying Machine
High-velocity air knives reduce moisture before packing.
Control Cabinet
Centralized controls for speed, pump and blower adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 500-5000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 16000-32000 x 1200-2200 x 1800 mm |
| Model | JS-GWDL-3000 |
| Main Power | 16-38 kW |
| Water Consumption | 1.2-3.5 m3/h with filtration |
| Approx. Weight | 3000-8000 kg |
| Applicable Materials | ginger |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
Ginger, turmeric and similar root crops with soil in grooves are suitable; brush hardness and spray pressure are selected by root condition.
Yes. Joyshine configures 500-5000kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
A peeling machine, vibration dewatering and air dryer can be added when the ginger needs to enter slicing or drying after washing.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
The High-Efficiency Ginger Washing and Drying Production Line is a fully automated system designed to efficiently clean and dry ginger for various food processing needs. Featuring advanced bubble washing, high-pressure spraying, and air drying, this production line ensures thorough cleaning and uniform drying, making it ideal for ginger export and large-scale ginger processing. With customizable configurations, the system meets the needs of different businesses, enhancing product quality while reducing labor costs and boosting production efficiency. Joyshine offers tailored solutions to help you achieve high standards in ginger processing and agricultural product cleaning.
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
