Fresh-cut Vegetable Washing Line
Joyshine provides turnkey fresh-cut vegetable processing lines (500-5000kg/h). SUS304 automated lines for sorting, cutting, washing, sanitizing & drying.
Key Parameters
| Capacity | 500-5000kg/h; 5000kg/h; 500kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 18000-36000 x 1200-2200 x 1800 mm |
Suitable Materials

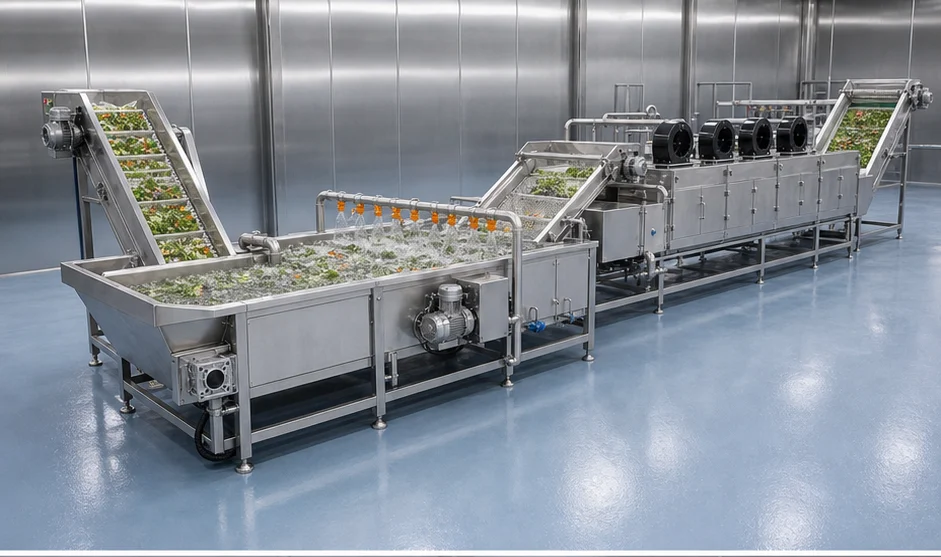

How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Feeding
Sorting
Bubble washing
Spray rinsing
Dewatering
Air drying
Packing
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Feeding Hopper & Elevator
Buffer storage and gentle lifting into the washing line.

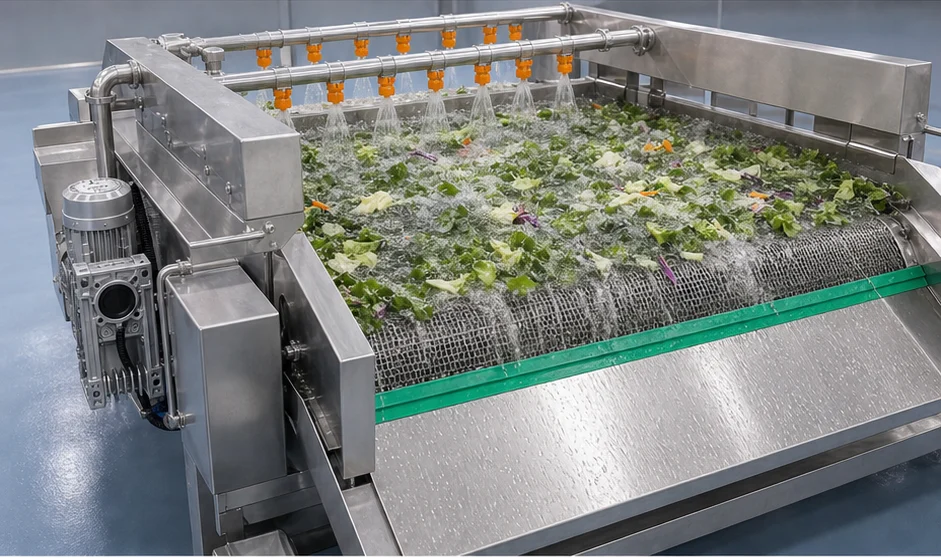

Bubble Washing Machine
Main washing section with bubble agitation and circulating water.
Spray Rinsing Section
Fresh-water spray rinse removes surface residue before discharge.
Vibration Dewatering Machine
Removes surface water and transfers material to the next process.

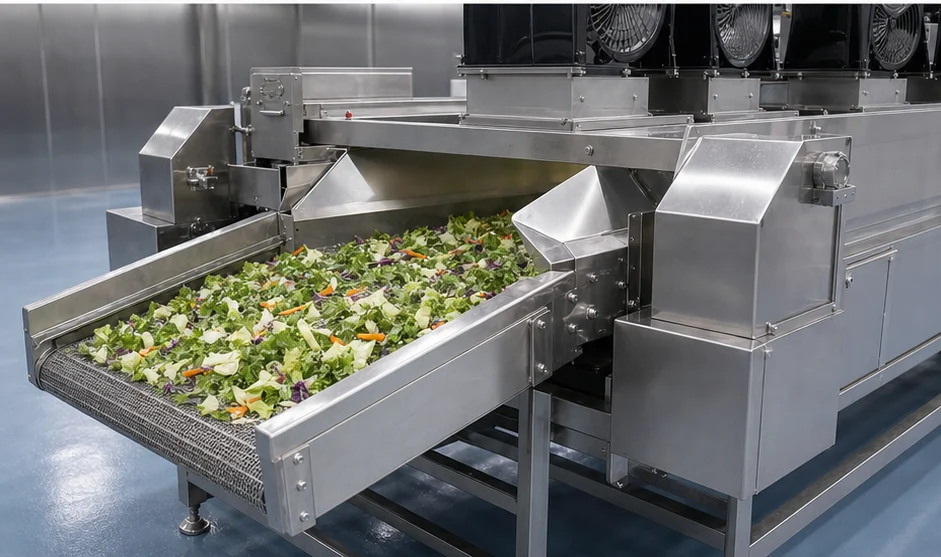

Air Knife Drying Machine
High-velocity air knives reduce moisture before packing.
Control Cabinet
Centralized controls for speed, pump and blower adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 500-5000kg/h; 5000kg/h; 500kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Customized, approx. 18000-36000 x 1200-2200 x 1800 mm |
| Model | JS-FCVL-5000 |
| Main Power | 18-45 kW |
| Water Consumption | 1.5-4.0 m3/h with circulation |
| Approx. Weight | 3500-9000 kg |
| Applicable Materials | vegetable |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
Cut lettuce, cabbage, spinach, herbs and other fresh-cut vegetables can be washed with adjustable bubble intensity and spray rinsing.
Yes. Joyshine configures 500-5000kg/h; 5000kg/h; 500kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
Sanitizing, vibration dewatering, air drying and inspection sections are commonly added for ready-to-pack salad products.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
Joyshine provides turnkey fresh-cut vegetable processing lines (500-5000kg/h). SUS304 automated lines for sorting, cutting, washing, sanitizing & drying.
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
