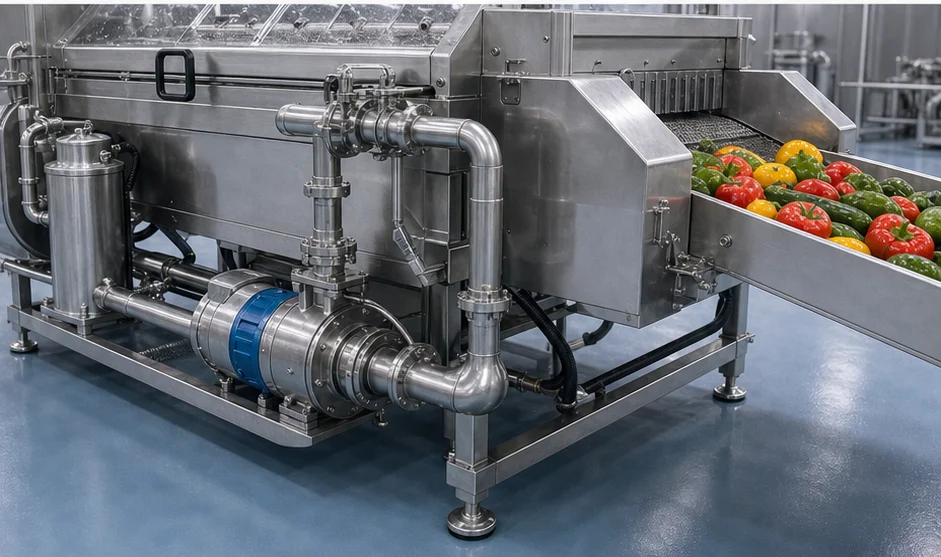

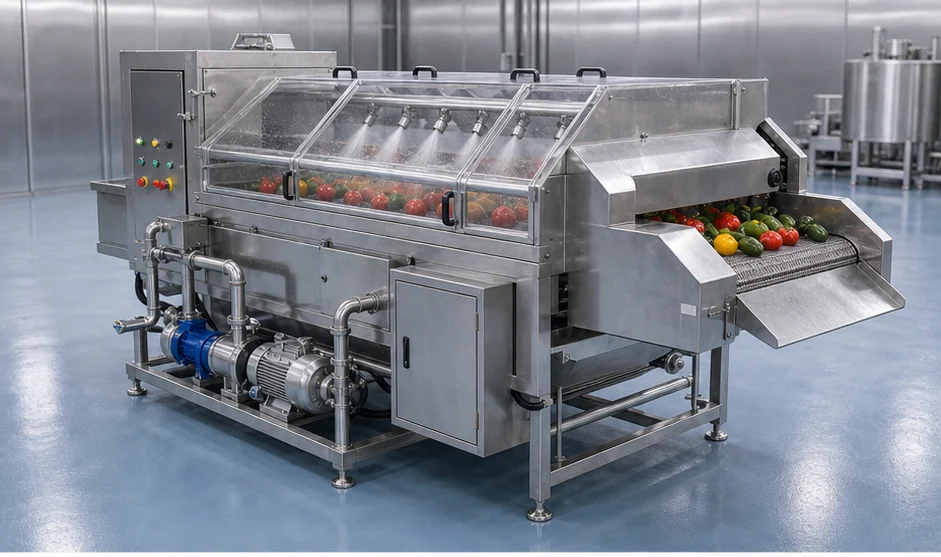

High Pressure Fruit and Vegetable Cleaning Machine
The High Pressure Fruit and Vegetable Cleaning Machine by Joyshine is designed to efficiently remove dirt, sand, and pesticide residues from various agricultural products, including root vegetables and fruits. Using powerful high-pressure water jets, this machine ensures thoro...
Key Parameters
| Capacity | 500-3000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Approx. 3000-6000 x 900-1500 x 1600 mm |
Suitable Materials
How the Line Works
Continuous processing stages take raw material from feeding to clean, dry and pack-ready product.
Feeding
Washing
Spray rinsing
Discharging
Standard Configuration
Each unit can be added, removed or resized according to your material and capacity.
Main Processing Chamber
Core washing or processing area built with food-grade stainless steel.

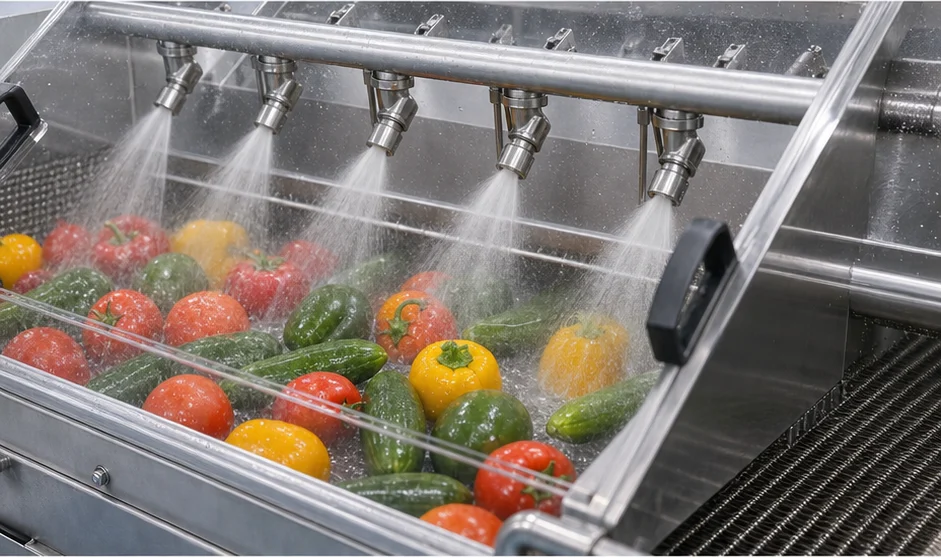

Water Circulation / Spray System
Improves cleaning performance while reducing water waste.
Brush / Roller / Conveyor Unit
Configured according to product shape and cleaning requirements.
Discharge Conveyor
Transfers finished material smoothly to the next step.
Control Cabinet
Simple controls for daily operation and adjustment.
Technical Specifications
Final parameters are confirmed in the technical agreement after layout design.
| Capacity | 500-3000kg/h |
|---|---|
| Material | SUS304 stainless steel |
| Voltage | Customized according to local power supply |
| Dimensions | Approx. 3000-6000 x 900-1500 x 1600 mm |
| Model | JS-HPW-1500 |
| Main Power | 5.5-15 kW |
| Water Consumption | 0.8-2.5 m3/h depending on nozzle pressure |
| Approx. Weight | 600-1800 kg |
| Applicable Materials | vegetable; fruit |
| Layout | Standalone machine or customized line layout |
| Customization | Capacity, dimensions, inlet/outlet height and optional modules can be customized |
Frequently Asked Questions
Can't find your answer? Contact our engineers
It is best for firm fruits, root vegetables and produce with attached mud where stronger spray cleaning is acceptable.
Yes. Joyshine configures 500-3000kg/h, conveyor width, inlet and outlet height, tank length and optional modules according to your workshop.
Adjustable nozzles, filtration and a following brush or rinsing section are recommended when mud load is high.
Yes. The equipment can be assembled and test-run with water or sample material before packing, with photos or videos for confirmation.
The High Pressure Fruit and Vegetable Cleaning Machine by Joyshine is designed to efficiently remove dirt, sand, and pesticide residues from various agricultural products, including root vegetables and fruits. Using powerful high-pressure water jets, this machine ensures thorough cleaning while maintaining the integrity of the products. Suitable for large-scale food processing, agricultural production, and commercial use, it helps businesses improve cleaning efficiency, reduce labor costs, and meet high hygiene standards. With customizable configurations and an easy-to-operate design, this machine is the ideal choice for businesses looking to enhance product quality and production efficiency.
This product can be configured according to raw material type, target capacity, workshop space and downstream processing requirements. Joyshine can provide layout suggestions, equipment matching and test-running support before delivery.
